    CE Table Type Longlife Impedance Analyzer Instrument For Ultrasonic Device


    Cheap and Sample Piezoelectric Transducers Testing Instrument


    Description :

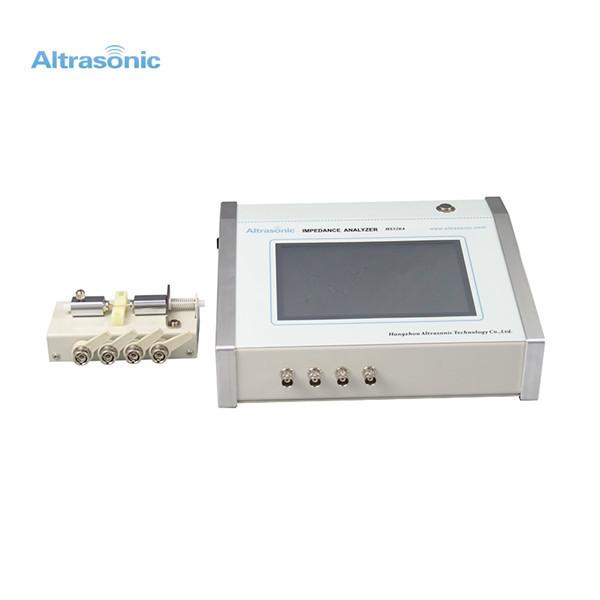

    The HS-520A impedance analyzer can measure and evaluate the parameters and performance of various devices and devices such as piezoelectric ceramic sheets, piezoelectric transducers, and buzzers. Judging by the impedance-phase-frequency curve and the admittance circle, it is clear at a glance.

    The impedance-phase-frequency curve and admittance circle of a normal product are shown in the following figure:


    blob


    But not all of the device's graphics are as shown above. Here are the graphics for several problematic devices:


    blobblobblob


    Specification:


    Impedance Analyzer HS520A Newest
    Frequency Range 1KHz~500KHz/1Mhz/hz/5Mhz
    Basic Accuracy < 0.5%
    Scan Speed 5 sec/one pass (equivalent to 600 scan dots)
    Frequency Accuracy ±10 ppm
    Phase Accuracy 0.15 degree
    Temperature Range 10~40 degree Celsius
    Impedance Range 0.1Ω~1MΩ
    Frequency Step 0.1Hz to Any
    Measure Items Resonance Frequency: Fs
    Half Power Frequency: F1 and F2
    Maximum real admittance at Fs: Gmax
    Dynamic Resistance: R1
    Anti resonance frequency: Fp
    Mechanical quality factor: Qm
    Free capacitance: CT
    Dynamic inductance: L1
    Dynamic capacitance: C1
    Static capacitance: Co
    electromechanical coupling coefficient: Keff and Kp
    Maximum real impedance at Fp: Zmax
    Measure Diagram G,B-F
    G-B (admittance circle coordinate)
    R,X-F
    R-X (impedance circle coordinate)
    Z,phase-F
    Y,phase-F
    Z(Logarithm),phase-F
    Amplification

    piezoelectric ceramic, ultrasonic transducer, power ultrasonic,

    ultrasonic weld, ultrasonic clean, ultrasonic sensor

    Dimensions : 240mm*190mm*100mm

    Size of LCD Screen: 8-inch screen


    Application :


    * Operation

    * Sonotrode tuning

    * Test of transducers

    * Test of acoustic sets

    * Test of piezo ceramics

    * Predictive maintenance
