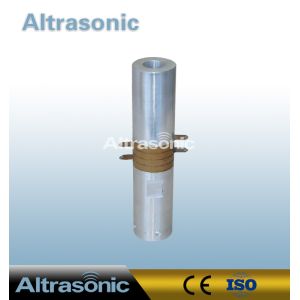

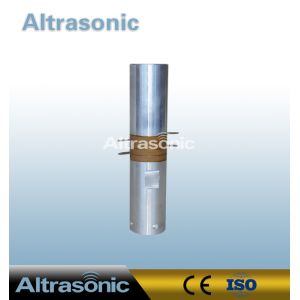

15KHZ Frequency 700W Ultrasonic Piezoelectric Transducer For Welding Machine

Product Details:

Payment & Shipping Terms:

Specifications:

Principle:

1, The main ultrasonic unit composed of a converter (piezoelectric transducer),booster and asonotrode(horn). All three elements of the stack are specifically tuned to resonate at the same exact ultrasonic frequency( typically 15,20,30,35 or 40KHz)

• Converter/transducer: converters the electrical signal into a mechanical vibration

• Booster: modifies the amplitude of the vibration. It is also used in standard systems to clamp the stack in the press.

• Sonotrode/horn: applies the mechanical vibration to the parts to be welded.

2, ultrasonic generator(power supply) delivering a high power AC sinal with frequency matching the resonance frequency of the stack.

Features:

1.Adopt the imported chips

2.High output power

3.High quality

4.Already export to USA, Europe, Asia ,Middle East etc country

5.15KHz-70KHz,100w-6000w supplied

Application :

The applications of ultrasound are extensive and are found in many industries including electrical and computer,automotive and aerospace, medical and packaging. Whether two items can be ultrasonically welded is determined by their thickness. If they are too thick ,this process will not join them. This is the main obstacle in the welding of metals. However, wires,microcircuit connections,sheet metal,foils,ribbons and meshes are often joined using ultrasonic welding. Ultrasonic welding is a very popular technique for bonding thermoplastics. It is fast and easily automated with weld times often below one second and there is no ventilation system required to remove heat or exhaust.

Competitive Advantage:

1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation

Transducer Type

PS:we can also customize depend on your requirements.

15KHZ Frequency 700W Ultrasonic Piezoelectric Transducer For Welding Machine

Hangzhou Altrasonic Technology Co., Ltd

Located in Hangzhou, China, was found in 2010. Altrasonic has many years' experiences in the business of industrial ultrasonic components and ultrasonic devices in China. We use this experience and experise to provide only the best ultrasonic devices and components based on the competitive price.

Altrasonic equipment focused on the r&d of high power ultrasound applications, Altrasonic has absolute leading
core technology, the most stable and mature manufacturing technology, rich experience, can provide direct
ultrasonic application scheme demonstrate, structure design, system configuration and related parts production.

Altrasonic equipment cooperated with the key graphene manufacturers, applied the ultrasound equipment in
graphene preparation process of industrialization firstly, and make the ultrasonic be a good supporting to the large-scale preparation of the high quality and low cost graphene materials.

Our company mission:Ultrasonic Technology makes life easier.

WHY CHOOSE ALTRASONIC ?

• OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Indonesia, Singapore, Türkiye, Malaysia,  Germany, and other country still being discussing.

• Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound,  and the importance of team spirit of cooperation.

• Half the price, double the value. Every product reach you have been test in our company three times, and with  72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to
 upgrade our products.

• Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.

• Individual Customize. We can customize products according to your requirements, Also supply OEM service.

 Customize ultrasonic solution for different applications.
