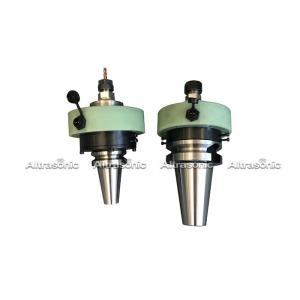

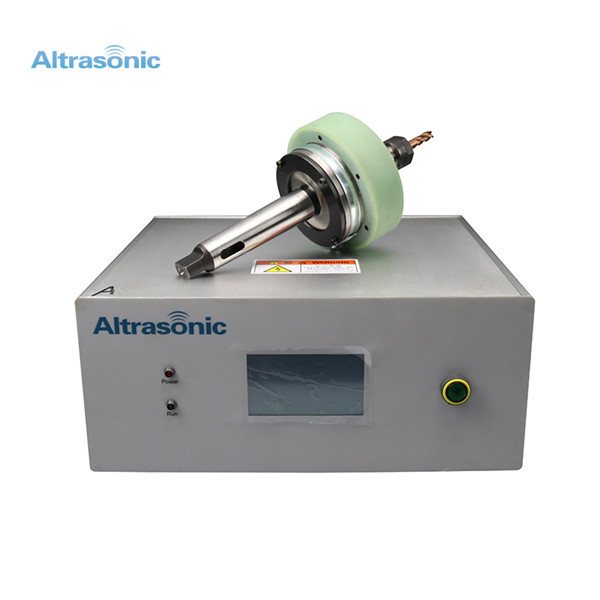

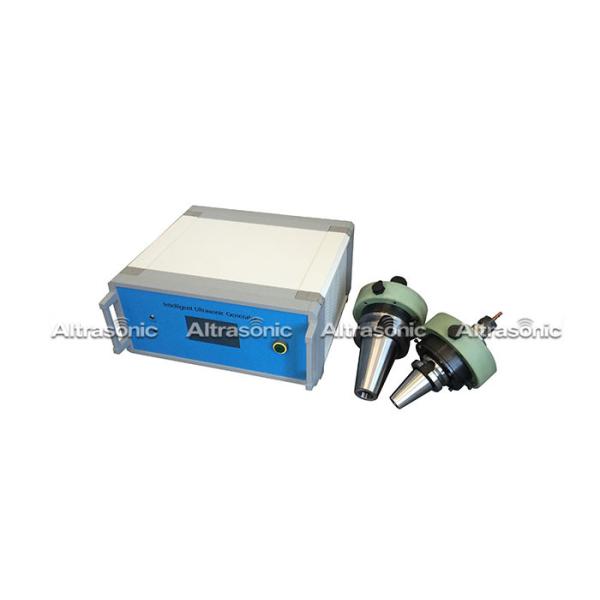

Ceramic Matrix Composites Ultrasonic Assisted Machining 20Khz CNC micromachining

Technical Parameters:

Resonance point amplitude: 10um or more;

Speed: 3000 r / min or less

Matching tool: carbide end mill head Φ2-Φ13; disk cutter Φ50;

Power: 500W

Ultrasonic drilling:

Ultrasonic assisted drilling is a recently-developed technique, in which high-frequency (> 20 kHz) vibration is superimposed onto the movement of a standard drill bit in the axial direction, providing advantages including reduced drilling forces (reduction often in excess of 80%) and improved quality of drilled holes when compared to conventional drilling. Ultrasonic assisted drilling also achieves a reduction in entry and exit delamination size, but not in the expected proportion considering the observed reduction of drilling forces. A different mechanical process to that in conventional drilling may be driving the delamination in Ultrasonic assisted drilling, for example dynamic or thermal effects in addition to thrust and torque loads.

Competitive Advantages:

• Products for standardized production, high reliability;
• Compatible with existing milling machine or machining center interface, can be installed directly;
• Ultrasonic system amplitude stability, continuous working time is long;

Applications:

• Various kinds of materials especially fragile rigid material.
• Processing plane, groove, all kinds of form surface (such as spline, gear and thread) and special surface of mould.
• Application area: machining industry, machine tool equipment manufacturing.
• Application occasion: manufacturing enterprise, universities and colleges, scientific research institution, mechanical equipment transformation industry.

Workshop:

CE Certification:

Packing&Shipping:

Payment:
