    Ultrasonic Knife for Rubber Cutting Quickly and Precisely without Cause Damage of Vulcanization

    Ask Lasest Price
    Brand Name : Altrasonic
    Model Number : HS-CR40
    Certification : CE
    Payment Terms : T/T, Western Union
    Delivery Time : 7 Work days
    Price : Negotiation
    Supply Ability : 3,000 units per month
    • Product Details
    • Company Profile

    Ultrasonic Knife for Rubber Cutting Quickly and Precisely without Cause Damage of Vulcanization


    Ultrasonic Knife for Rubber Cutting Quickly and Precisely without Cause Damage of Vulcanization


    Description:
    In the ultrasonic cutter, the piezoelectric element generates a force that resonates the whole body, from the transducer to the blade tip, generating a large vibration at the tip. The oscillator periodically generates voltage to resonate and drive the transducer. Using a component of the ultrasonic cutter called the horn to wring the cross-sectional area, from the piezoelectric element to the blade tip, can obtain a larger vibration.
    Ultrasonic cutting advantage and features:
    1. Cut the material quickly and precisely
    2. Smooth and traceless cutting edge
    3. Powerful, effective realiable
    4. Low cost, easy operator. An operator only handle the probe and step the foot switch .So anybody can use it easily.
    Specification:
    FREQUENCY
    40Khz
    POWER
    500W 800W
    INPUT
    AC110-240V, 50/60Hz
    POWER CONTROLLER
    stepping or continuous
    MATERIAL OF CUTTING HEAD
    aluminum alloy, stainless steel, titanium alloy, alloy steel.
    MACHINE WIGHT
    4 kg-16KG
    ACCESSORIES
    foot switch, additional blade
    COOLING DEVICE
    compressed air mouth can be installed.
    CABLE LENGTH
    2M or customized
    FOOT SWITCH
    available
    Features of Different Cutting Equipment:
    Cutter Type
    Bottom Type
    More than 10 times speed than ordinary cutter
    Stable work for a long time
    Customizing cutting of related shape according to client’s requirement
    Available on the producing of disk-shaped ultrasonic cutter equipment, realizing the rolling cutting
    Cutting something uncutable for normal cutters
    Cutting all kinds of fabric, clothes, plates and so on.
    Decreasing cost for its replaceable blade
    Harden process; more than 20000 meters effective cutting length
    Easy to install and use and the previous cutting technology can be reserved
    Easy to install and suitable for ordinary cutter
    Applications:
    1. For thermal plastic gate cutting and flush cutting.
    2. For non-woven or woven cutting,textile cutting, fabric cutter, curtain cutting,window blind fabric
    3. For rubber, PVC, leather plastic, cardboard, acrylic, polyprolene and so on cutting.
    4. For tape and film cutting .
    5. For paper cutting,printing industry cutting.
    6. For package material cutting
    7. For the automotive industry cutting

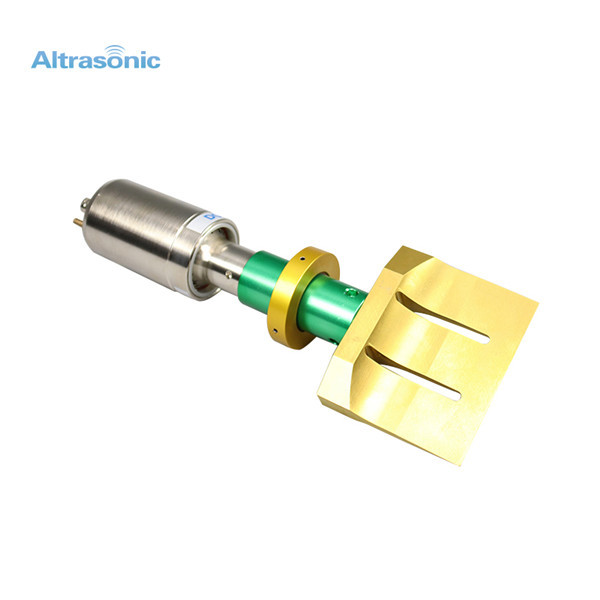

    Product display:

    Ultrasonic Knife for Rubber Cutting Quickly and Precisely without Cause Damage of VulcanizationUltrasonic Knife for Rubber Cutting Quickly and Precisely without Cause Damage of Vulcanization
