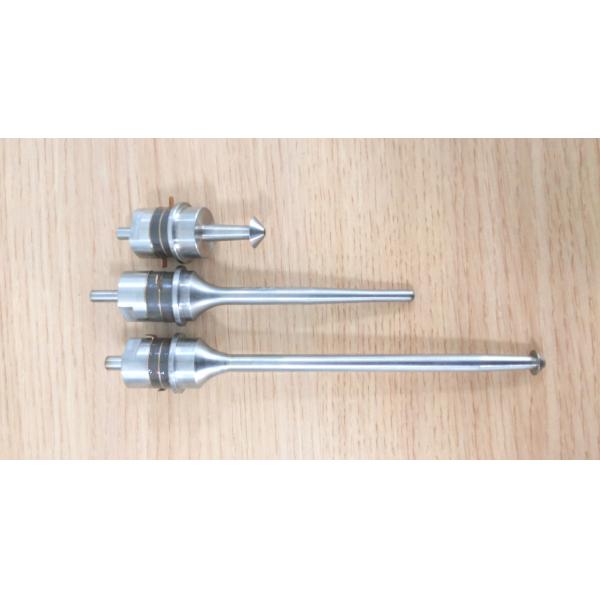

100W High Frenquency Ultrasonic Transducer 50KHz For Nebulizer
Machine
Specifications:
Model | HS-3050-4Z |
Frequency | 50 khz |
Output power | 200 watt |
Joint bolt | M8 |
Ceramic disc Diameter | 30 mm |
Quantity of Ceramic discs | 4 pcs |
Capacitance | 5.5 - 6.2 nf |
Amplitude | 2 um |
Application | Nebulizer machine |
Description:
The High Frenquency 50KHz Piezoelectric Ultrasonic Transducer 100W for
nebulizer machine is applied to different type ultrasonic nebulizer machine. And can
be connected with different type nozzles.
Piezoelectric transducer uses the piezoelectric effect to realize
transduction between electric and sound energy. It comprises a
radiation head, electrode, cap, prestressed bolt, piezoelectric
chip and an insulating tube. The piezoelectric transducer is widely
used in ultrasonic atomizer, Nozzle sprayer in industry processors.
Applications:
Atomization humidification, chemical mixing, production, spray
drying granulation, paint spraying, metal milling and so on
We provide a wide range of high quality ultrasonic transducer, No
matter what kind of transducer you are looking for,We can make sure
that you can find one at here. it is by utilizing piezo-electric
effect to convert electrical energy into mechanical energy. The
bolt-on type can make sure that the transducer can produce stable
ultrasonic when load changes.
Applied Range:
Atomize various kinds of liquid
Large atomizing volume, energy-saving, environmental protection
No plug, no abrasion
Competitive Advantage:
1. Titanium materials for longer service life.
2. Once assembled, the transducers are aged before testing and
final assembly. The properties of piezoelectric materials can
change with time and pressure, so a bit of time on the shelf prior
to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance
are excellent.
4. In good heat resistance, can be used in a wide range of
temperature with long life and high reliability.
Warranty:
We have 1 year warranty, and lifetime maintenance.
Industrial Application :
High Frenquency 50KHz Piezoelectric Ultrasonic Transducer 100W for
nebulizer machine
What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts
for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20,
CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we
can give you a competitive price and custom-made it for you.
